The Garmin Tread audio system delivers premium quality audio that you can take on any adventure and is designed for any off-road powersport vehicle. it comes with multiple audio sources. The built-in speaker LEDs let you control and even sync colors to your music. Enjoy the flexible setup designed for any side-by-side or other off-road vehicle. The rugged design helps withstand bumpy rides and weather conditions, so your music never skips a beat. Get everything you need for music: two 6.5” XS-LED tower speakers, the Tread audio box with LED controller and a wireless remote.
The Garmin Tread audio system pairs with the Tread® app on your compatible smartphone or Tread® device to display music and settings.A wireless remote is included for convenient control.The IP67 design is built to withstand dust, water and weather conditions, so your music will keep playing through rough terrain. you can choose from thousands of colors for your speakers. You can even sync your speakers to pulse to your music. When paired with your Tread navigator (sold separately), you can sync to your vehicle speed, or match your vehicle’s marker on the map for group rides.A universal design is built for any side-by-side or off-road powersport vehicle.
Garmin Tread Audio Box Features:
Audio Box:
Speakers:
In The Box:

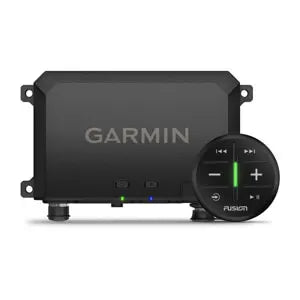

Tread Audio Box with LED controller
Wireless remote
Wiring harnesses
Documentation
The Garmin Tread audio system pairs with the Tread® app on your compatible smartphone or Tread® device to display music and settings.A wireless remote is included for convenient control.The IP67 design is built to withstand dust, water and weather conditions, so your music will keep playing through rough terrain. you can choose from thousands of colors for your speakers. You can even sync your speakers to pulse to your music. When paired with your Tread navigator (sold separately), you can sync to your vehicle speed, or match your vehicle’s marker on the map for group rides.A universal design is built for any side-by-side or off-road powersport vehicle.
Garmin Tread Audio Box Features:
- Audio Box
- Garmin Tread audio box (does not play CDs)
-
Multiple Audio Source Includes:
- AM/FM
- AUX & Bluetooth
- Built-In Speaker - Built-in Bluetooth
- Tread App Compatible
- Rugged Design
- Flexible Setup
- Full Audio System
- Custom LED Speakers
- Wireless Remote Included
Audio Box:
- Physical dimensions (H x W x D): 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165")
- Weight: 997 g (2.2 lbs)
- Water & Dust rating: IP67
- Power input: 8 to 14.4 Vdc
- Operating temperature range: 32° to 122° F (0° to 50° C)
- Current (max.): 40 A
- Current (muted): less than 650 mA
- Operating temperature range: -4° F to 158° F (-20° to 70° C)
- Storage temperature range: -40° F to 185° F (-40° to 85° C)
- Compass safe distance: 203 mm (8")
- BLUETOOTH® wireless range: Up to 10 m (30 ft)
- ANT wireless range: Up to 10 m (30 ft)
- Fuse: 15 A mini-blade type
- Peak power (Watts): Four 200 W per channel
- RMS power (Watts): Four 100 W RMS at 14.4 Vdc input, 4 ohm
Speakers:
- Physical Dimensions: 177 mm x 233 mm (6.97" x 8.78")
- Weight: 2.49 kg (5.5 lbs)
- Water & Dust rating: IP67
- Operating temperature range: 32° - 122° F (0° to 50° C)
- Speaker size: 6.5"
- Peak power (Watts): 200 W per speaker
- RMS power (Watts): 50 W
- Sensitivity (1 W/1 m): 91 db
- Frequency response: 80 Hz - 18kHz
- Nominal impedance: 4 ohms
- Recommended amplifier power (RMS): 20 - 150 W
- LED lighting: Yes (RGB)
- LED supply voltage: 10.8 - 16 Vdc
- LED load current @ 14.4 VDC: 150 mA
- Voice coil diameter: 30 mm (1.18")
- Cone material: Polypropylene (PP) cone with cloth surround
- Tweeter type: Aluminum dome
- Supported roll bar sizes: 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter
- Wiring: 3 m
In The Box:
Works with Garmin Models:
- Fusion®: XS Series Marine Subwoofers, XS Series Marine Wake Tower Speakers
- Tread®: App, base Edition, Overland edition SxS edition, XL - Overland Edition
